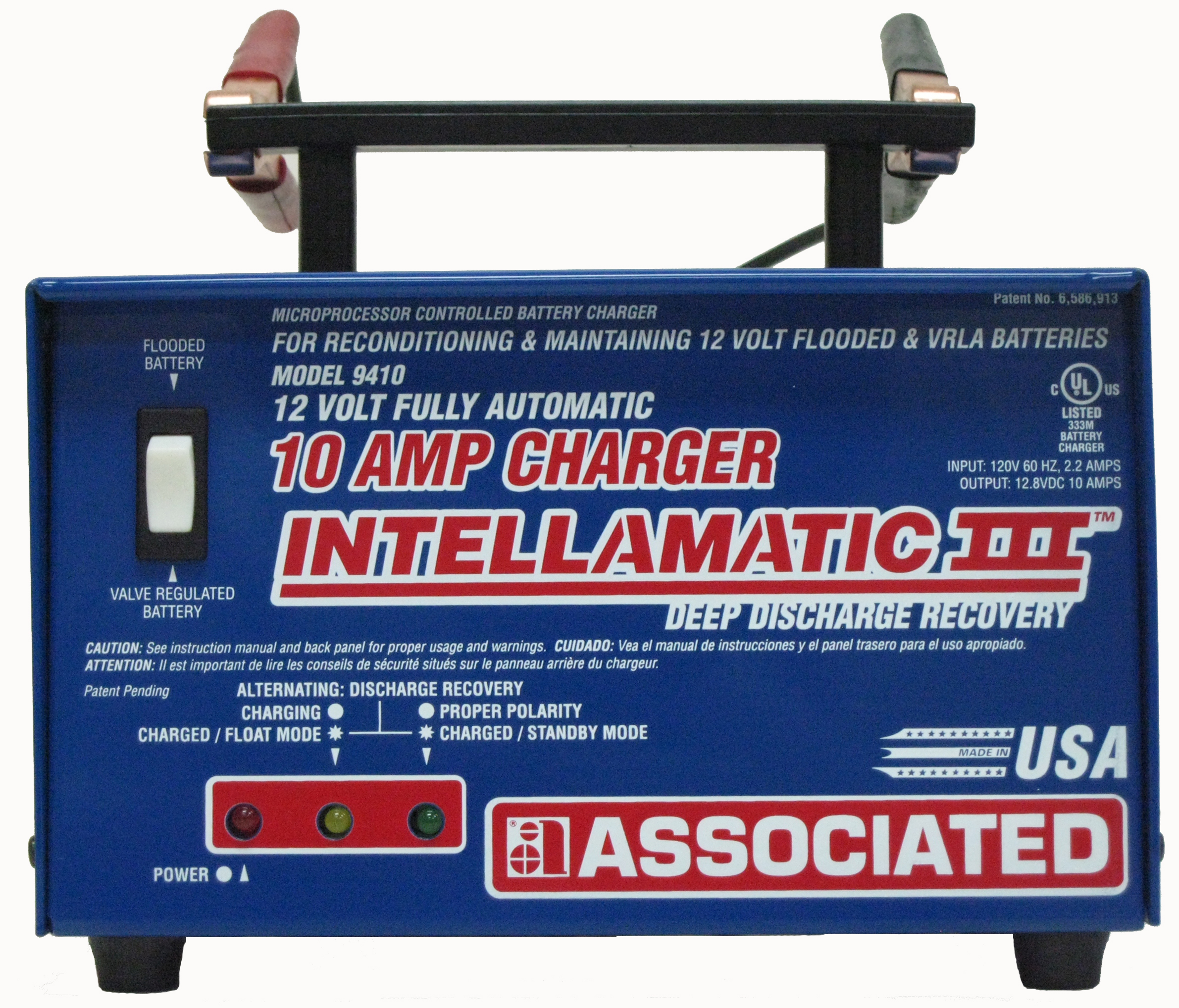

Model 9410

Portable 12 Volt 10 Amp AGM/GEL/ Flooded Technology

Charger/Analyzer

Performance Features
• Micro-processor controlled and fully automatic
• Analyzes batter


y condition and automatically selects
proper charging technique
• Voltage controlled charging
• Suitable for flooded batteries
including GEL and AGM
• Utilizes three color LEDS to
monitor charging status
• Program for deep discharge
recovery of flooded batteries
• Capable of charging both
small and large batteries
• Switch for selecting battery type
• Maintains battery charge, can be left connected to battery
• MADE IN USA








Specifications




Limited warranty:
1 YEAR

Shipping dim. (HxWxD):
10”x9”x9”

Weight:
11 LBS

UL/CSA Continuous Rating:
10A

Voltage:
12V

UL Cranking Assist Rating:
N/A

AC cord:
6’ 18-3

DC leads:
6 1⁄2’, 16 AWG

Clamp rating:
50A
